Salesforce CTI Integration for Avaya Aura

Many contact center agents toggle between the tools and the applications to deliver the service. Comstice Webphone for Salesforce simplifies Avaya Contact Center Agent experience so that they can have screen-pop with the incoming call, click to dial from Salesfoce contact pages for a better customer service. And the best part is that there is no application installation or VPN needed.

Making and receiving calls from Salesforce pages with Avaya CM, Session Manager and Avaya AES helps enterprise users and contact center agents to work seamlessly and handle calls efficiently. Here are the benefits, features and configuration steps for this solution; for more information click here.

What is CTI Integration at Salesforce?

CTI Integration helps Salesforce users to have click to dial feature and screen-pop for the incoming calls. Click to dial helps Salesforce users to call the contact directly from Salesforce page by clicking on the phone number call icon. This helps Salesforce user to easily call the contacts without any VPN or application installation needed. Enterprise users, partners, call center agents can easily make calls and update the call results inside Salesforce.

CTI Integration also helps Salesforce users to get a screen-pop of the caller in the incoming call. This reduces the call handling significantly and also collects more information about the call outcome. Since our goal is to maximise First Contact Resolution, this is very powerful to achieve business goals.

Why Salesforce Integration with Avaya CM and Avaya AES

• Full Data Privacy: You can handle calls without going through a shared cloud service; the whole solution is hosted on your network or your private cloud.
• Zero Installation On User PCs: Enterprise Telephony users and Avaya contact center agents can login, make and receive calls without any installation needed on the agent PC.
• Faster Integration with Outsource Agencies and BPOs: Your outsource partners can start handling your customers and calls without any comprehensive IT integration required.
• No VPN Required: Comstice Web Phone is a WebRTC Phone until it reaches into your network. It is fully encrypted in the signaling and audio.

Use Cases of Salesforce Integration with Avaya AES

Many businesses are looking for the options to run everything inside their CRM solutions to have full visibility of the operations. Here are some features of using Comstice Webphone inside Salesforce pages;

Draft Project Plan

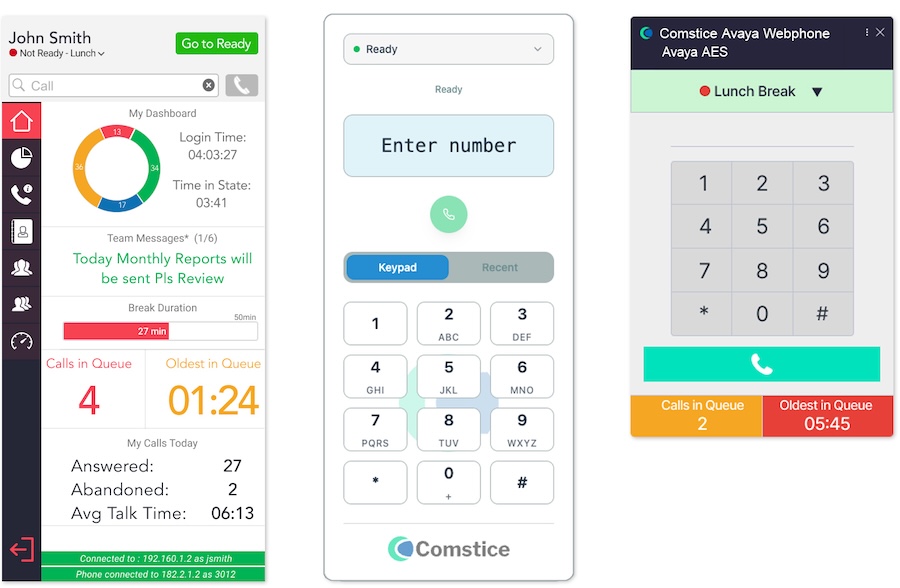

Various Comstice Webphone skins available for your business requirements

• Full Avaya CMS Reporting: Track agent performance with 100% accuracy. Customers report 30% improvement in workforce management efficiency.
• Screen-Pop for Incoming Calls: Incoming call's calling number can be searched, existing incident or the contact details of the caller can be automatically displayed in the agent's Salesforce screen.
• Call Logs: Inbound and outbound call logs are listed for the user to call back the other party quickly.
• Agent Dashboard: Comstice also offers Agent Dashboard to call center agents to see the real-time activity, shift schedule, daily performance and the states of the team members inside Salesforce pages.

Use Cases of Salesforce Integration with Avaya CM and Session Manager

Your users do not need to be call center agents. Comstice Webphone can directly register into Avaya Session Manager as a third-party SIP Phone to make and receive calls from Salesforce pages;

• Click to Dial: Click on the phone icons of each contact to make calls directly.
• Screen-Pop for Incoming Calls: Incoming call's calling number can be searched, existing incident or the contact details of the caller can be automatically displayed in the agent's Salesforce screen.
• Call Logs: Inbound and outbound call logs are listed for the user to call back the other party quickly.

Audio Recording

Comstice Webphone integrates with Calabrio, Verint recording and any other platform that support SIPREC. Comstice also offers audio recording solution that can be bundled into the solution as well.

Configuration Steps: Salesforce

Salesforce has an existing framework called Open CTI which makes Comstice Webphone to be integrated easily;

1. Call Center Configuration

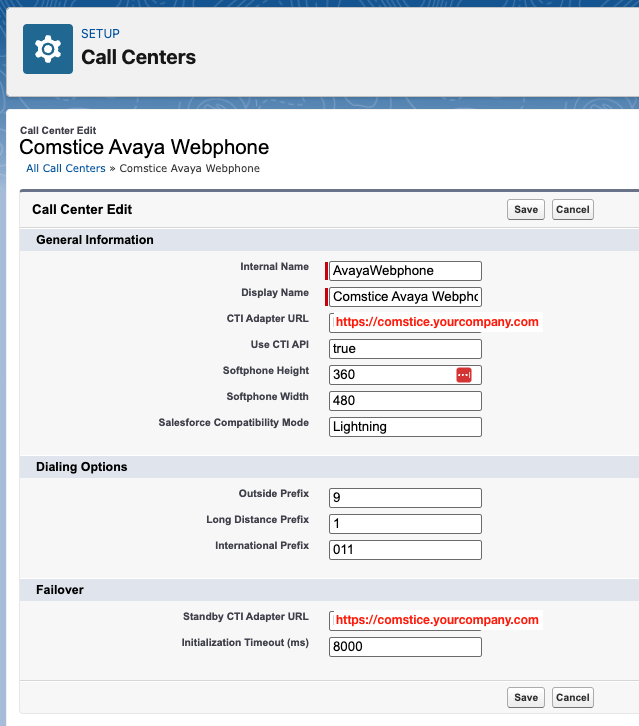

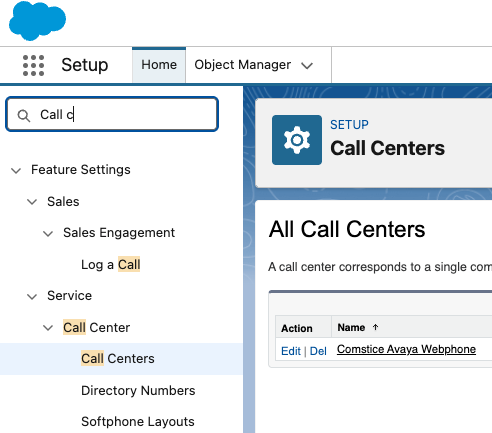

• Call Center Configuration: Go to Setup > Call Center > Configuration and create a new Call Center configuration.
• Add Settings and Permissions:You can assign this feature to certain profiles or deselect all the options to permit webphone access to any user.
• Comstice Webphone URL:Comstice Webphone URL will be the URL that is pointed to the Comstice Webphone running on your network. Click here to request a weblink for a demo webphone and test scenario.
• Phone Icon:Once you configure this profile and Shift+Refresh your screen, you should see the phone icon on the top right corner of the Salesforce screen.

2. App Manager Configuration

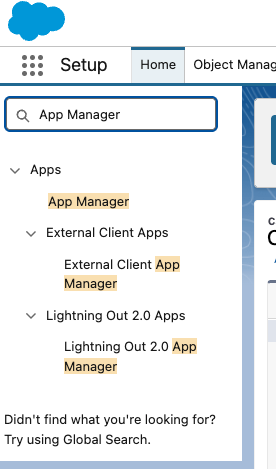

• App Manager Configuration: Go to Setup > App Manager > Service Console > Edit

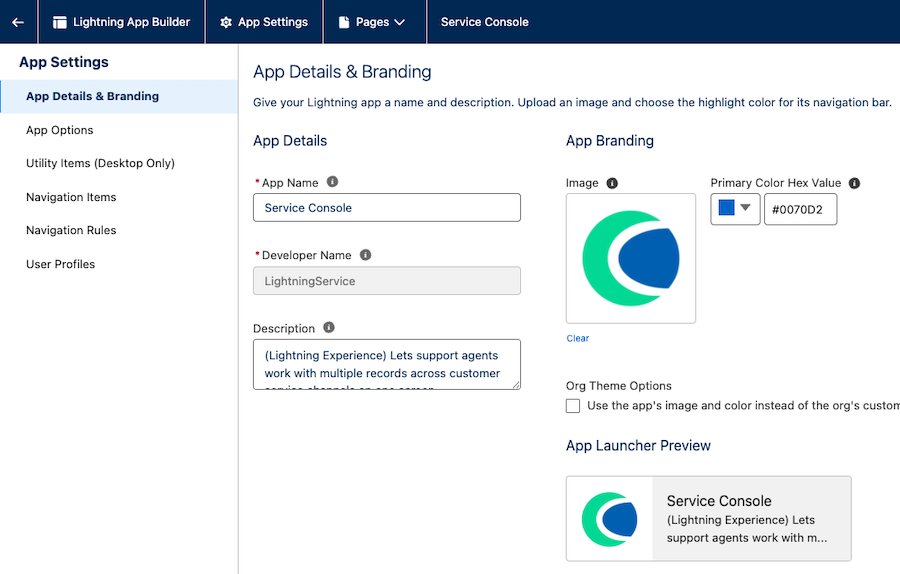

• Service Console Logo: Update the Service Console visuals as shown

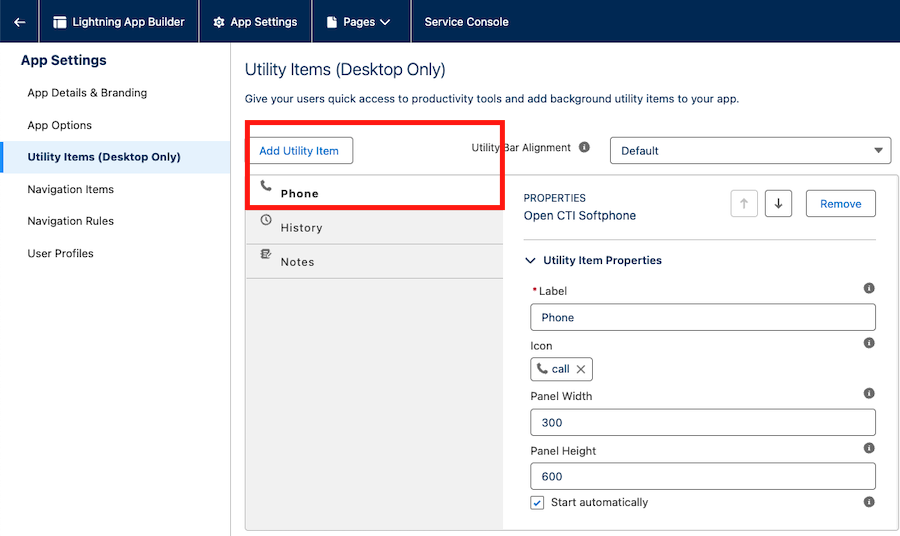

• Utility Items: Add Open CTI Phone item as a new tab. Click here to request a weblink for a demo webphone and test scenario.
• User Profiles: Update user profiles of your choice to allow the users you want to have access to Comstice Webphone.

3. CORS Configuration

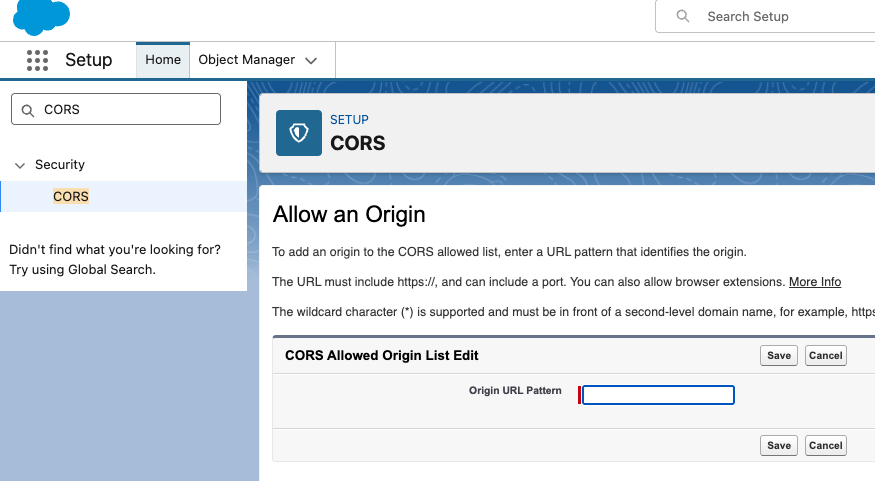

• CORS Configuration: Go to Setup > CORS and add your company's Comstice Webphone URL as an allowed cross-origin.

Configuration Steps: Avaya Session Manager and AES

• Configure Avaya Session Manager:Configure Comstice Webphone as a SIP Phone on the Session Manager and assign it to an agent.
• Configure Avaya AES Server (Only for Call Center Agents):Make sure that each agent has basic TSAPI license. TSAPI license can be reused if it already exists for audio recording.

Avaya Salesforce CTI Integration Frequently Asked Questions

• What is Salesforce CTI integration? It is a webphone integration between your Salesforce pages and your Avaya Communication Manager and Avaya AES (for call center agents only).
• Does Avaya work with Salesforce? Comstice helps Avaya to work with Salesforce for screen pop and click to dial. Comstice uses WebRTC standard on the Salesforce web page and converts WebRTC to SIP for Avaya. Avaya only supports SIP, not WebRTC. Comstice helps to integrate both.
• How long does integration take? The draft project plan is provided above and it is around 14 business days. Since the solution will be deployed on the client's infrastructure, the project duration is mostly related to the client's handling of internal change requests.
• Do agents need to install software? No. That is the whole point. Agents do not need to install any software on their PCs.
• Is the integration secure? Webphone has two call legs. The publicly exposed leg of the call is the WebRTC leg of the call; it starts from Salesforce page of the user PC all the way down to Comstice WebRTC Gateway server running on your network. This is fully encrypted in the signaling (HTTPS) and audio stream (secure RTP) level. Same technology is used in the Microsoft Teams calls. SIP leg of the call is internal and it is not exposed to the public Internet.
• Avaya discontinued two separate solution similar to this. Could this solution be discontinued? This solution is used not only by Avaya customers but also Cisco customers. Many outsource agencies use this platform for their services. Therefore, there is no anticipation to discontinue this service in the next ten years.
• What is the cost? The cost is based on your agent count. Named agents or concurrent agent count is used for the pricing. More agents you have lower the per agent cost. Pricing is provided as subscription; minimum annual subscription. You also need basic TSAPI licenses for each server. If you already have them for audio recording for example, those licenses can be reused.

Why Partner with Comstice

• Comstice team has been working on IP Based Contact Centers since 2002.
• Comstice solutions have multi-vendor support; they are not only for Avaya. Therefore, there is a larger user footprint and more accurrate best practices on each solution.
• Comstice experience comes from the early days of Voice over Internet. Many companies have evolved from web design and web technologies. Comstice has a telecom background; we helped businesses to move from hard-ware intelligent solutions back in 2002 onwards to software-intelligent systems and our solutions and features have evolved since then.
• Comstice team has worked on many large scale IP telephony and IP Contact Center projects since 2004. From 40,000 user telephony systems on a large European Aircraft manufacturer to offshoring customer service to India for a market leader printer company in the USA.
• Comstice set sight for the future; many businesses will seek to protect their data while simplifying their customer service operations. "Pressure" is the common word to describe customer service. We want to change that and set "Calm as the KPI in Customer Service".
